Handicap Barriers
Leading Manufacturers and Wholesaler of MOS-HDPT-2001 Handicap Barrier and Wider Handicap Barrier from Noida.
| Business Type | Manufacturer, Supplier |
| Click Here To View Catalog |  View |
| Width Of Passage | ≤800 Mm |
| Material | Stainless Steel 304 |
| Pass Speed | ≤ 30 Person/minutes |
| Opening/Closing Time | ≤ 1 Sec |
| Dimension | 168(L)*800(W)*1050(H) Mm |
| Swing Direction | Single Side |
| Sensor | One Way & Two |
| Power Voltage | AC220V±10% 50Hz |
| Drive Voltage | DC24V, 20W |
| Input Signal | 12V DC Level Or 12V Pulse >100ms |
| Working Current | <2000mA |
| Length Of Flap Arm | 800 Mm |
| Open Direction | Single/Dual |
| Operation Through | All Access Control |
| Total Weight | 65 Kg ±20% |
| IP Degree | IP54 |
| Operation Condition | -30℃-70℃ |
| Relative Humidity | <95% |
| None-Condensation | True |
| Business Type | Manufacturer, Supplier |
| Click Here To View Catalog | View |
| Material | Stainless Steel 304 |
| Color | Silver |
| Dimensions | 980H*420W*330 Mm |
| Sheet Thickness | 1.0 Mm |
| Operating Time | 2.5 Sec |
| Passage Width | <900 Mm |
| Passage Speed | 25-30 Person/min |
| Operating Direction | Unidirectional/Bidirectional |
| Arm Movement | Swing (Single Side) |
| Flap Material | Acrylic With Frame |
| LED Indicator | Provided On Body |
| Motor Type | 24 V DC Brushless |
| Input Voltage | AC 220V+-10% 50-60 Hz |
| Input Power | 30-60 W |
| Opening Signal | Dry Contact Signal |
| Safety Functions | Anti-Collision, Anti-Pinch, Illegal Intrusion Alarm |
| Self-Test Functions | Infrared Quantity 3 Pc |
| Alerts | Voice And Strobe |
| Operating Mode | Smart Cards, Face Recognition, Biometric, Push Button, Remote |
| Power Failure Unlock | Automatic |
| IP Degree | IP 44 |
| Opening Noise | <-30 Db |
| Mcbf | 2 Million |
| Working Environment | Indoor/Outdoor (if Sheltered) |
| Operating Temperature | -10 To 60 Deg |
| Humidity | <95% |

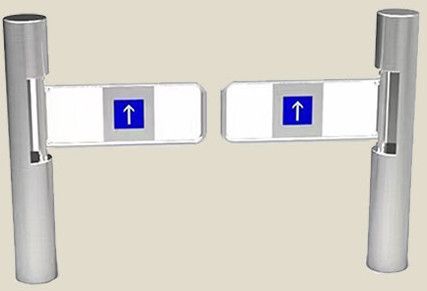

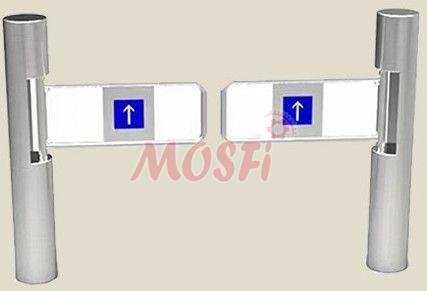

We offer a high-quality Wider Handicap Barrier made of durable Stainless Steel 304 in a sleek Silver color. With dimensions of 980H*420W*330 mm and a sheet thickness of 1.0 mm, this barrier ensures reliable performance. Operating at a speed of 2.5 sec and accommodating a passage width of <900 mm, it allows smooth flow with a passage speed of 25-30 person/min. The unidirectional/bidirectional operating direction and swing arm movement make it versatile for various settings. The flap material is Acrylic with a frame, making it both functional and visually appealing. Ideal for manufacturers and suppliers seeking top-notch accessibility solutions.
