1.90 Lac / Piece( + 18% GST applicable)
| Business Type | Manufacturer, Supplier |
| Click Here To View Catalog |  View |
| Voltage | 220 V |
| Shape | Rectangle |
| Click to view more | |
Product Details
Material
Metal & Plastic
Type
Anti Crash
Size
Standard
Brand Name
MOSFi
Color
Yellow
Design
Dual Boom
Warranty
1 Year
Surface
Polished
Product Code
MOS BB 2009 CRASH
Port
Delhi
Delivery Time
3 Days

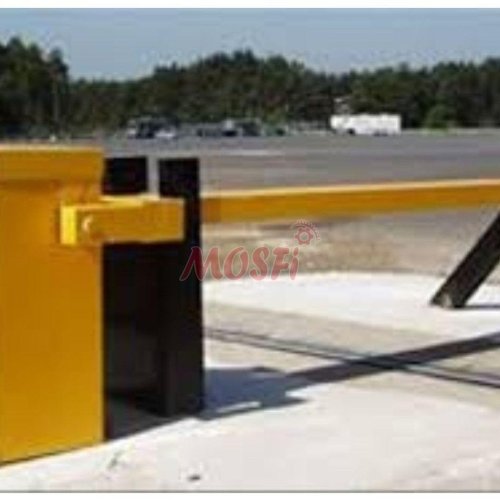

We are a leading Manufacturer and Supplier offering a high-quality Anti Crash Boom Barrier. Our standard-sized barrier is designed with a durable metal and plastic construction in a sleek rectangle shape. Operating at 220V, this barrier is ideal for ensuring safety and security. With a polished surface finish, it adds a professional touch to any setting. Backed by a 1-year warranty, our Anti Crash Boom Barrier is a reliable solution for traffic control and access management.
Specification
| Parameter | Specification |
| Open / Close Time | 6 seconds |
| Boom Arm Length | 10 ft (Up to 3 meters max) |
| Counterbalance | Counterbalancing the weight of the boom using MS weight cubes for heavy-duty operation |
| Boom Material | Mild Steel 50×50×5 mm bent sheet pipe straight arm with MS boom stand locking and rubber rest |
| Barrier Material | 1283×1247×460 mm Mild Steel, treated with heavy anti-corrosion coating for long life; 16-gauge bent sheet |
| Protection | Control & switchgear elements, contactor, Schneider terminals, electronic circuit (Phoenix or standard make), limit switch available |
| System Operating Voltage Range | Operates satisfactorily between 200–250 V |
| Motor | Customized MOSFI ¼ HP motor, power consumption < 200 W, motor speed 1400 RPM |
| Power Supply | 220V ±10%, 110V ±10% Single Phase AC, 50/60 Hz; 3 Phase with VFD controller optional |
| Gear Unit | Customized MOSFI low-friction gear for smooth and long-life operation; hand crank provided |
| Operating Temperature | -5°C to +60°C |
| Humidity / Noise Level | Humidity: 5–90%, Noise: 45 dB |
| Paint Type | Powder coated, RAL 6001 with reflective retro finish |
| Obstacle Detection | Boom remains at last assumed position upon obstruction |
| Boom Locking | Automatic locking with gripping system |
| Operation Mode | Electronic push button switch / Manual hand crank / All access control systems |
| Power Failure Operation | Manual release via hand crank option |
| Weight | Approx. 110 kg ±10% |
